BIGTREETECH Octopus MAX EZ V1.0 BTT Motherboard Upgrade Octopus Pro 3D Printer Parts TMC5160 TMC2209 For Voron 2.4 Kits CoreXY

Price: 14.86 - 61.73

Introduction

BIGTREETECH Octopus MAX EZ, a 32 bit motherboard, is an upgraded version of Octopus Pro . Its self-developed stepper motor sockets enhance safety and user experience, and it adds a series of features that Octopus Pro does not have, greatly enhancing its DIY capabilities.

Feature

1. 32 bit 550 MHz ARM Cortex-M7 series STM32H723ZET6 MCU;

2. Onboard BOOT button to enable DFU mode to update bootloader;

3. The thermistor circuit is protected to prevent MCU damage from shorted heated bed and heater cartridge connections;

4. Upgraded with eFuse protection, which responses faster with strong protection, effectively protecting the motherboard from    being damaged caused by short circuits, over-current, electric spark, etc;

5. MCU firmware can be upgraded via SD card, or use DFU via Klipper’s make flash command;

6. 10 EZ driver sockets, working with pinless drive;

7. Support power loss recovery, filament runout sensor, CAN, auto power-off, BLTouch, RGB, etc;

8. Onboard SPI interface for connecting acceleration sensor to enable Klipper’s input shaping.

If you need other resources for this product,please visit https: //github.com/bigtreetech/Type 1:

1PC * BIGTREETECH EZ31865 V1.0

Type 2:

1PC * BIGTREETECH Octopus MAX EZ V1.0

Type 3:

BIGTREETECH Mini12864 V2.0

BIGTREETECH Octopus MAX EZ V1.0

Type 4:

BIGTREETECH EZ31865 V1.0

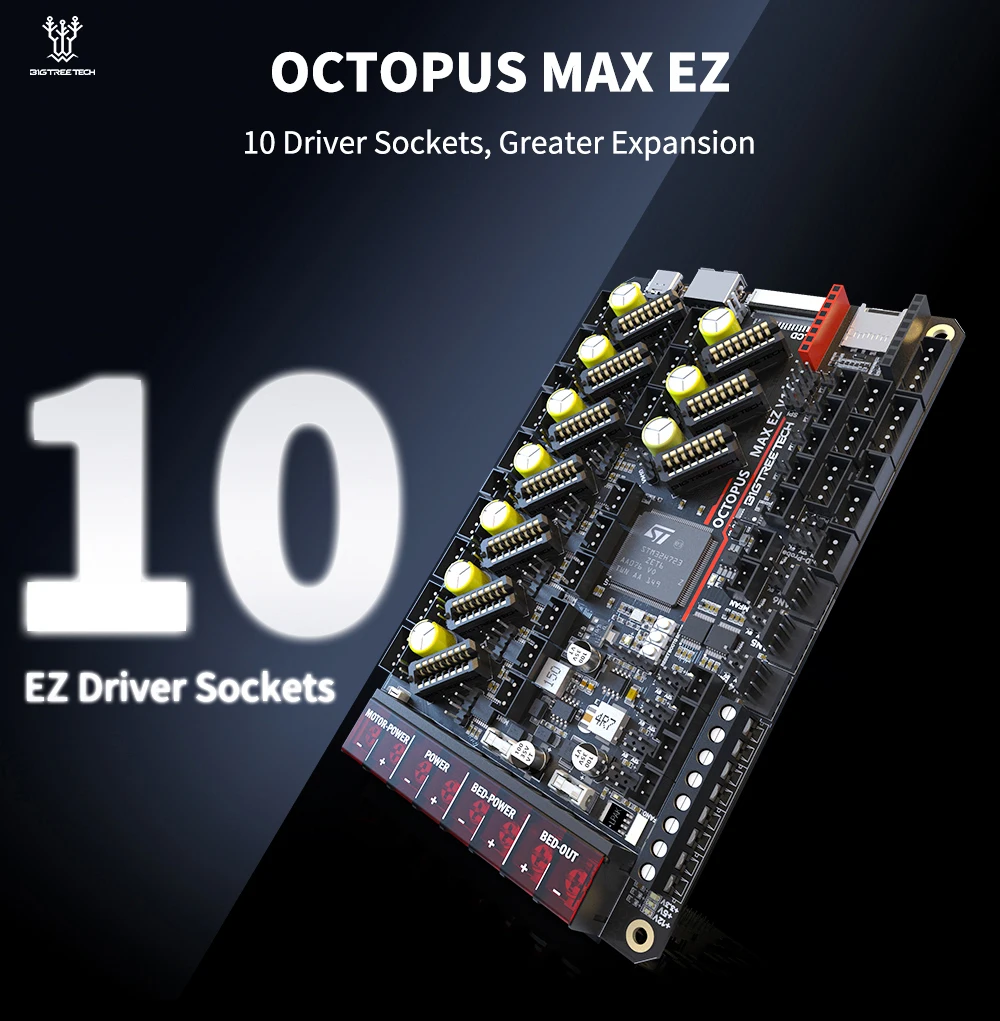

BIGTREETECH Octopus MAX EZ V1.0 OCTOPUS MAX EZ

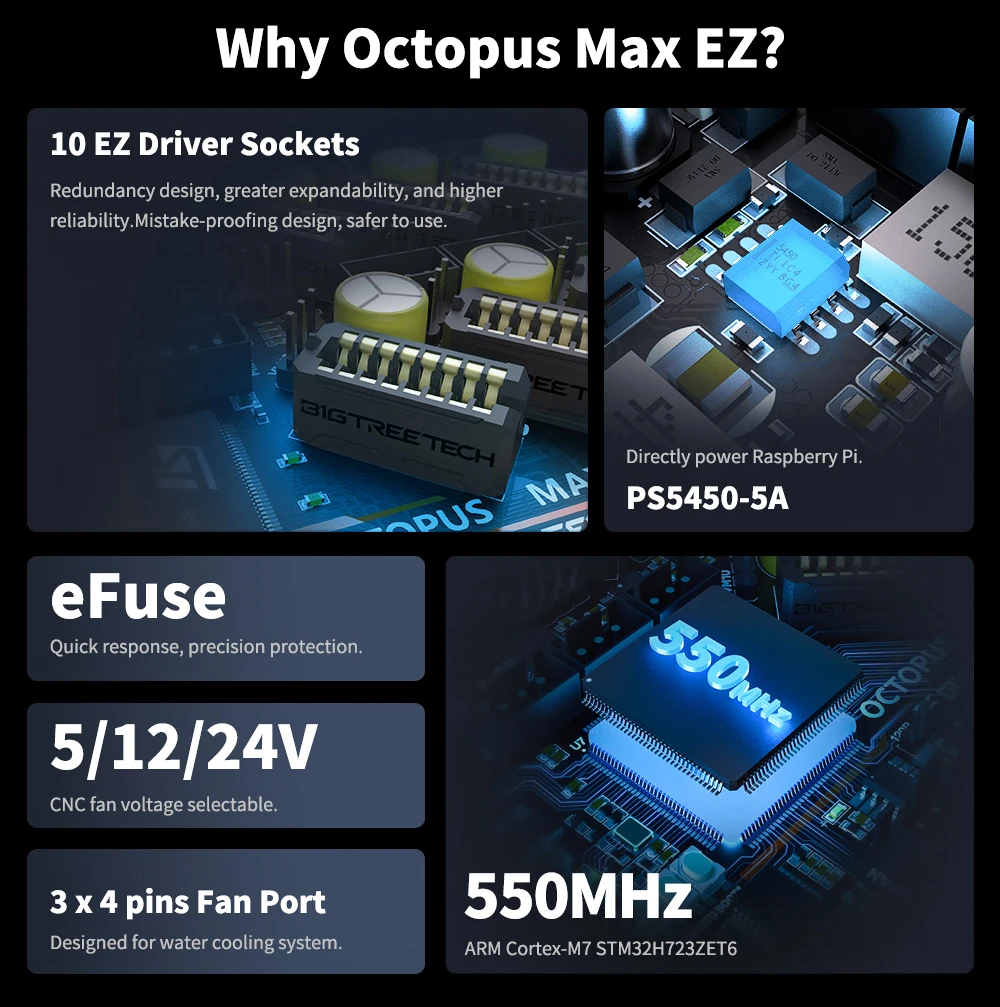

10 Driver Sockets, Greater ExpansionWhy Octopus Max Ez?

10 EZ Driver Sockets

Redundancy design, greater expandability, and higherreliability.Mistake-proofing design, safer to use.Redundancy Design .Greater Expandability

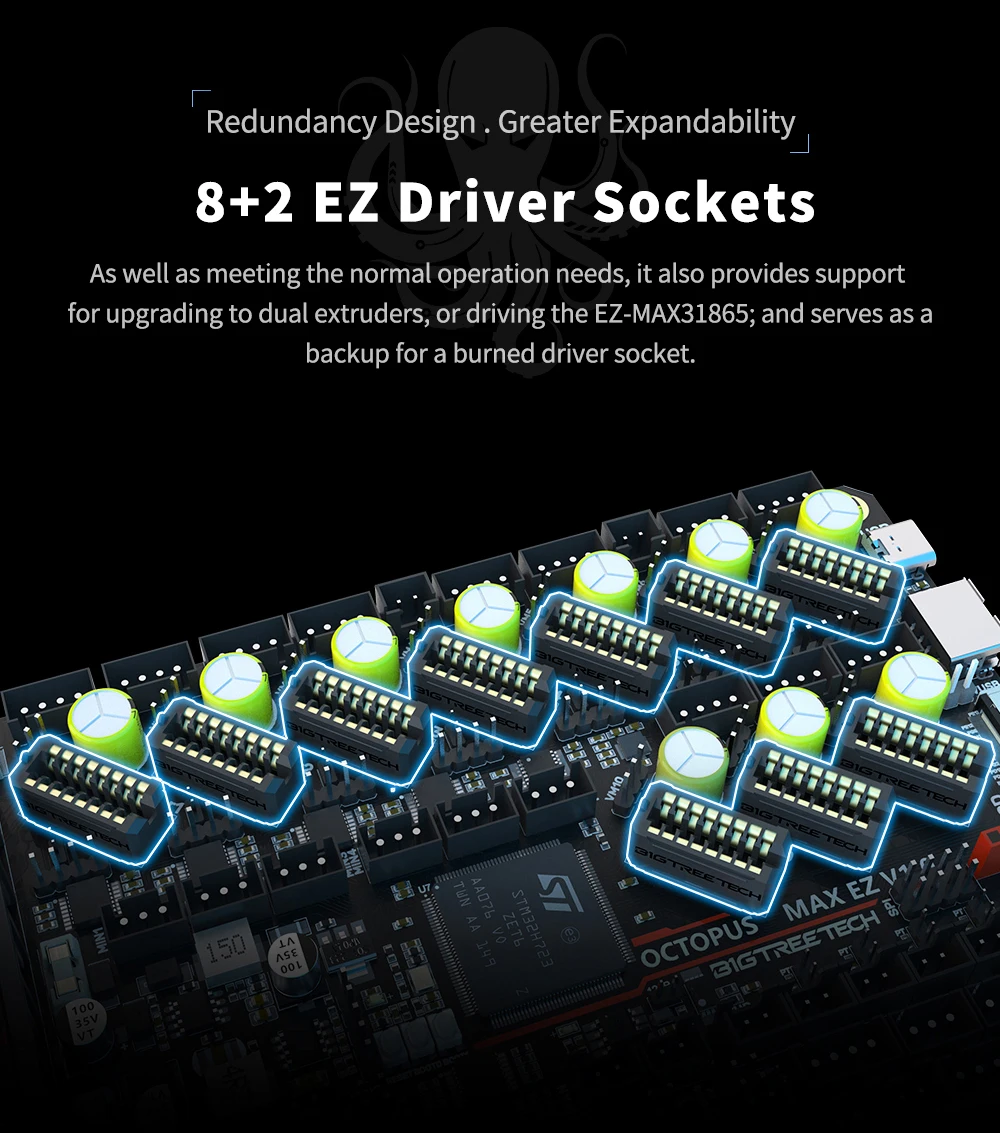

8+2EZ Driver Sockets

As well as meeting the normal operation needs, it also provides support for upgrading to dual extruders, or driving the EZ-MAX31865; and serves as a backup for a burned driver socket.Mistake-Proofing Design

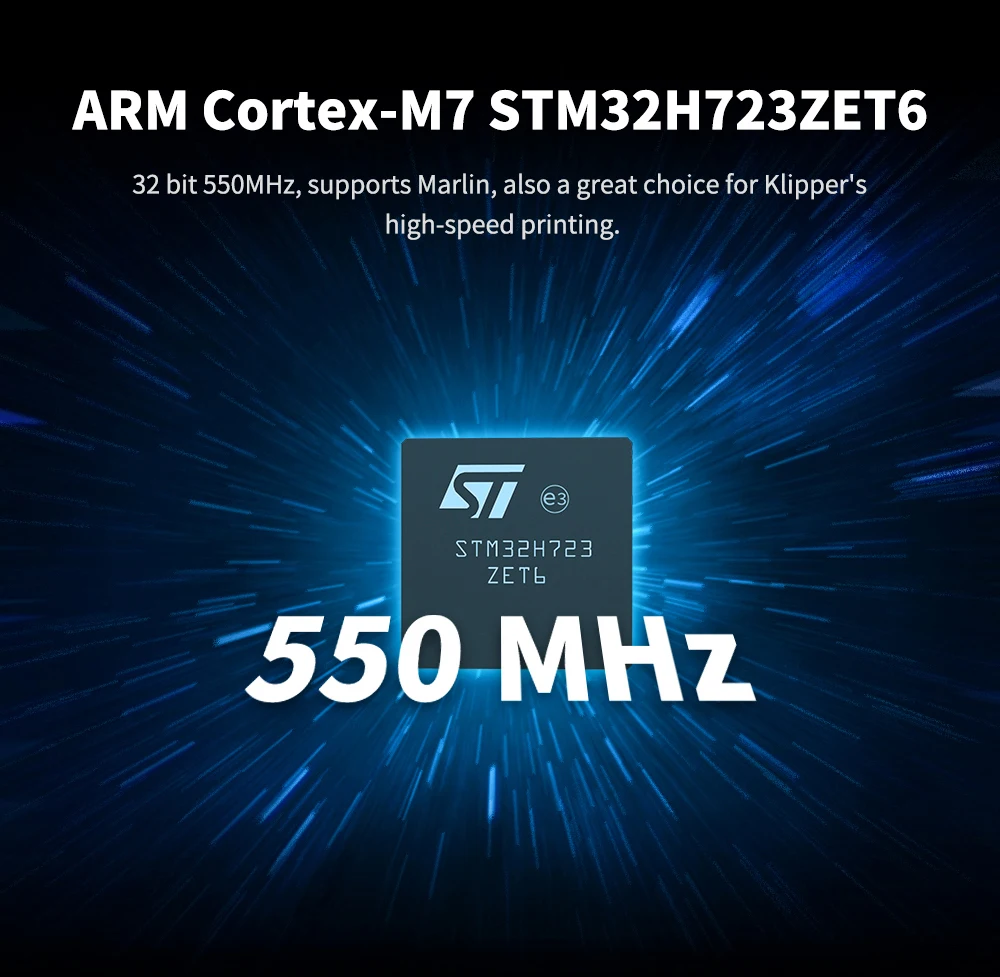

Work with mistake-proofing EZ drivers, thus, EZ5160Pro/EZ2209 can be plugged in with confidence. Onboard SPI and UART, no need for a jumper.ARM Cortex-M7 STM32H723ZET6

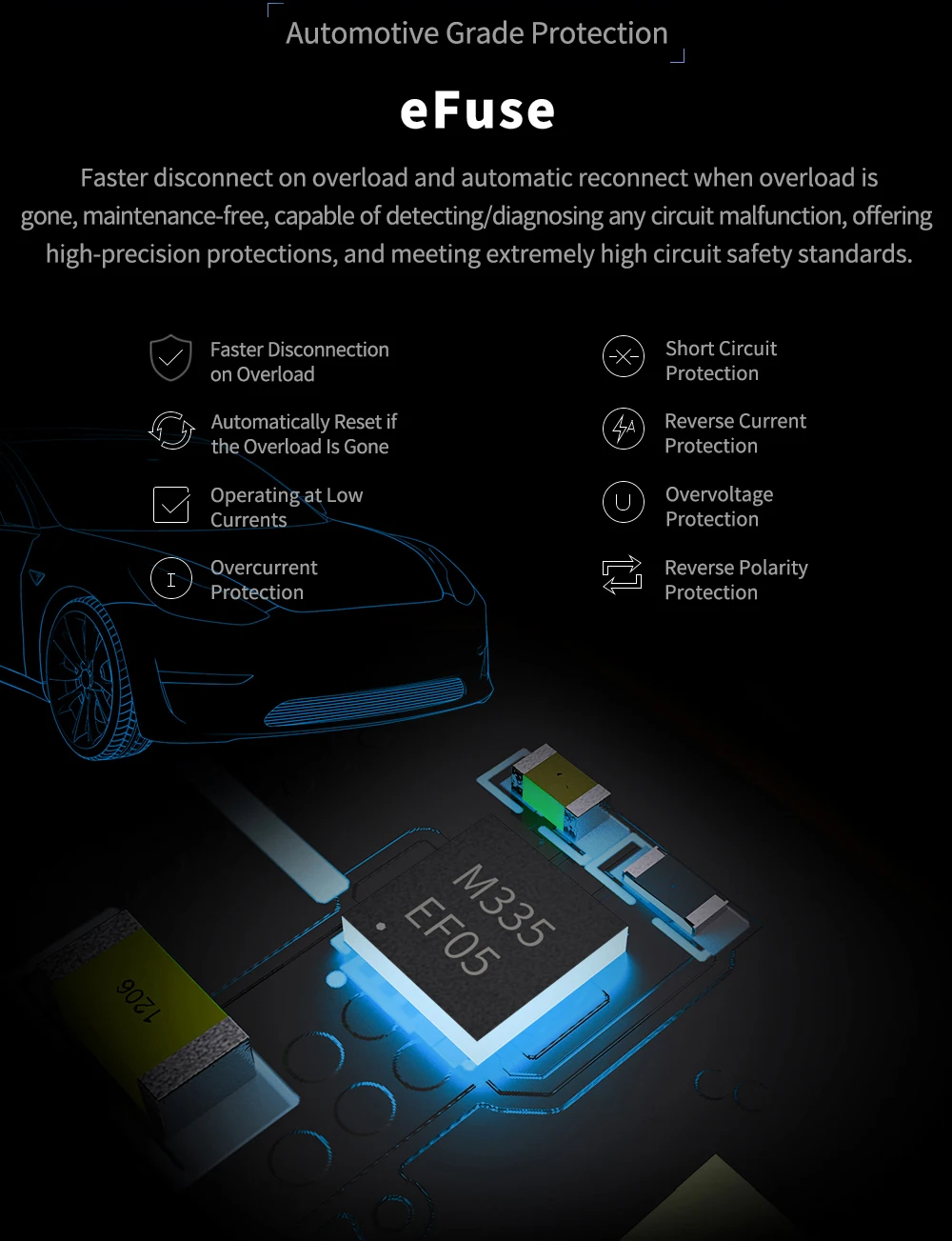

32 bit 550MHz, supports Marlin, also a great choice for Klipper’s high-speed printingAutomotive Grade Protection

eFuse

Faster disconnect on overload and automatic reconnect when overload isgone, maintenance-free, capable of detecting/diagnosing any circuit malfunction, offeringhigh-precision protections, and meeting extremely high circuit safety standards.Power Supply Chip

TPS5450-5A

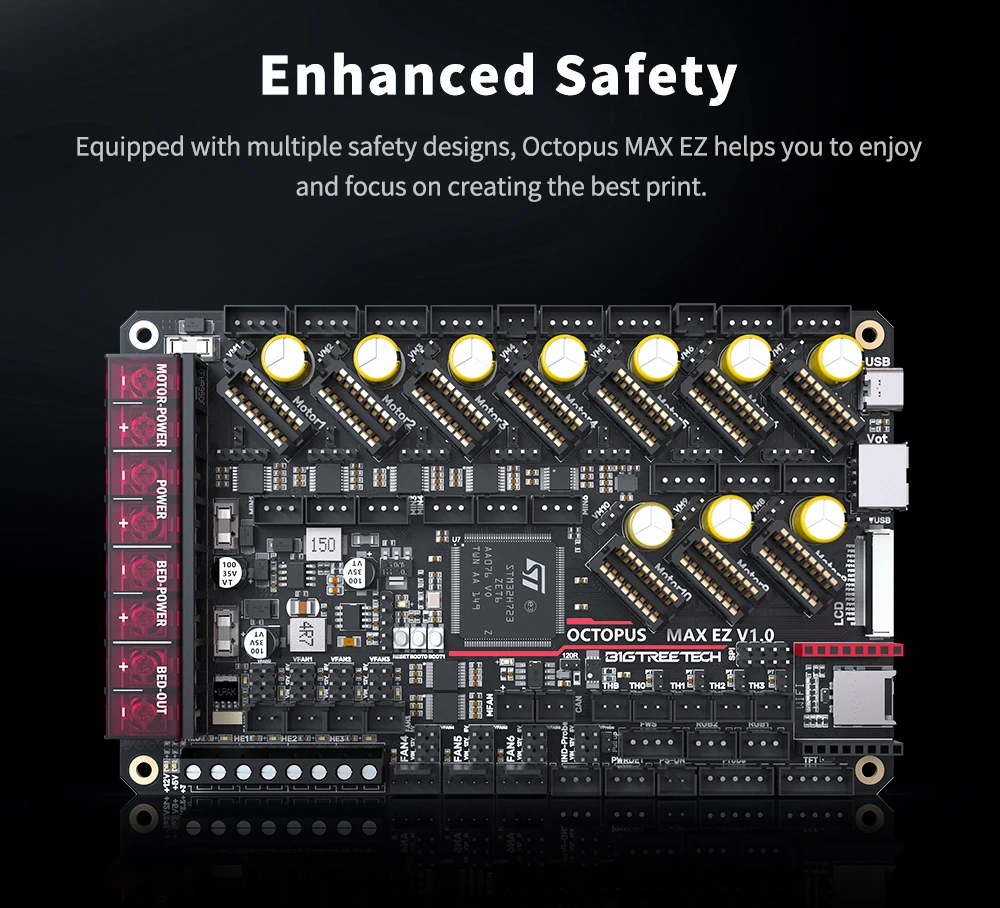

Support DC12/24V power input, current output rated at 5A max continuous and 6A max instantaneous, sufficient power supply for Raspberry Pi.Enhanced Safety

Equipped with multiple safety designs, Octopus MAX EZ helps you to enjoy and focus on creating the best print.01.High Performance Capacitors

A 56V output is supported, and the MCU is protected by the isolation chip

02.Replaceable Fuse Easier and more convenient to maintain.

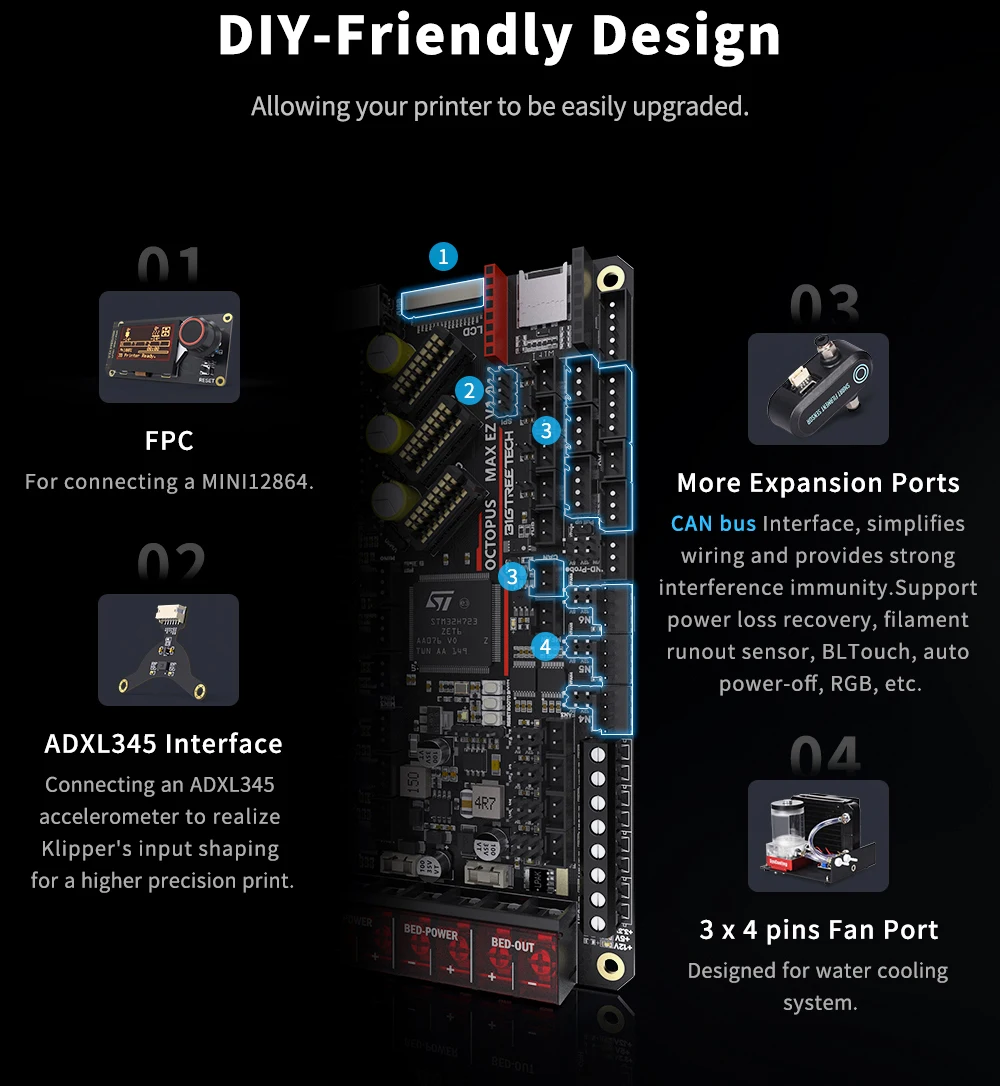

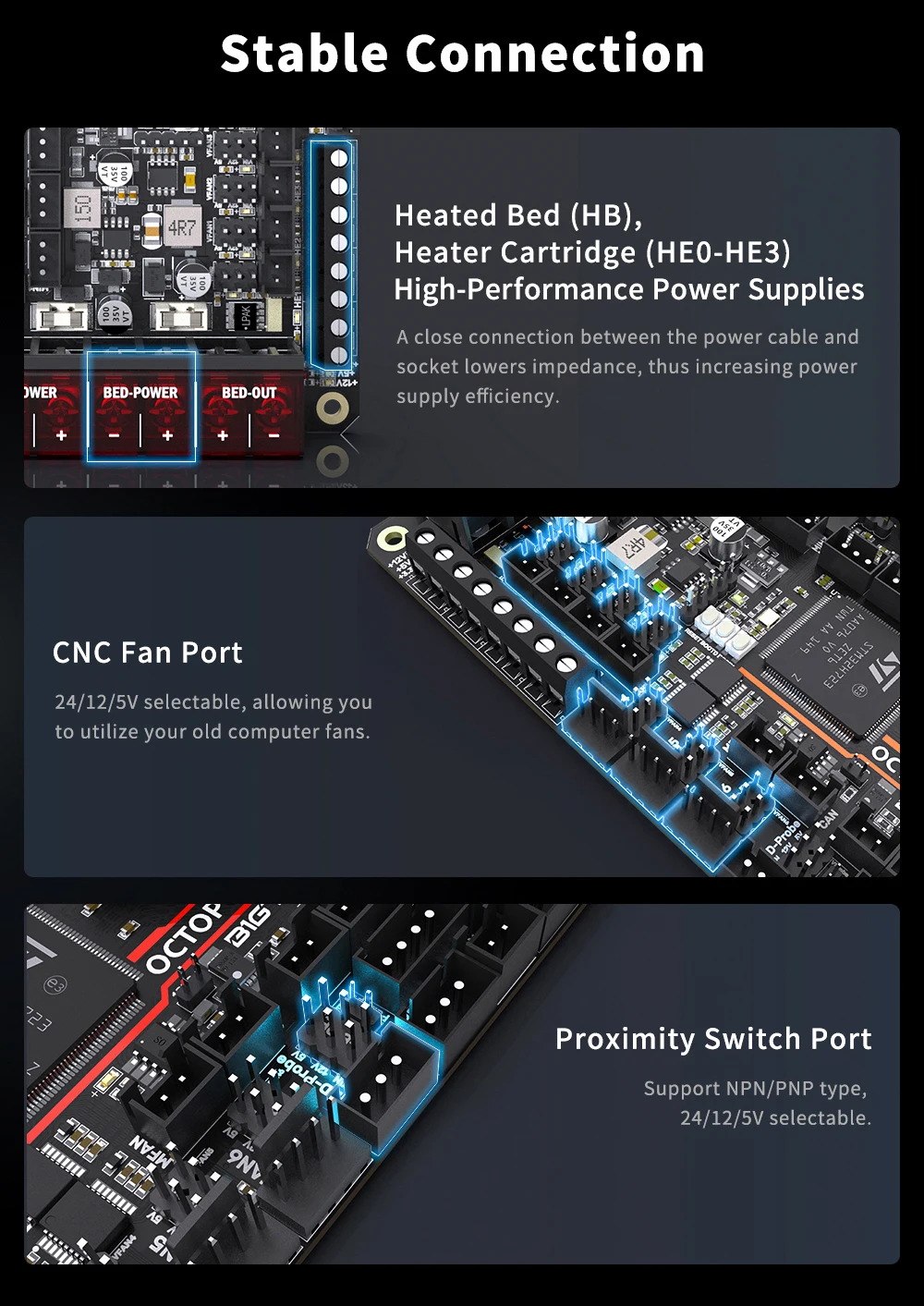

03.High-efficiency MOSFET Heat generation can be reduced, and motherboard performance can be increased.Stable ConnectionDIY-Friendly Design

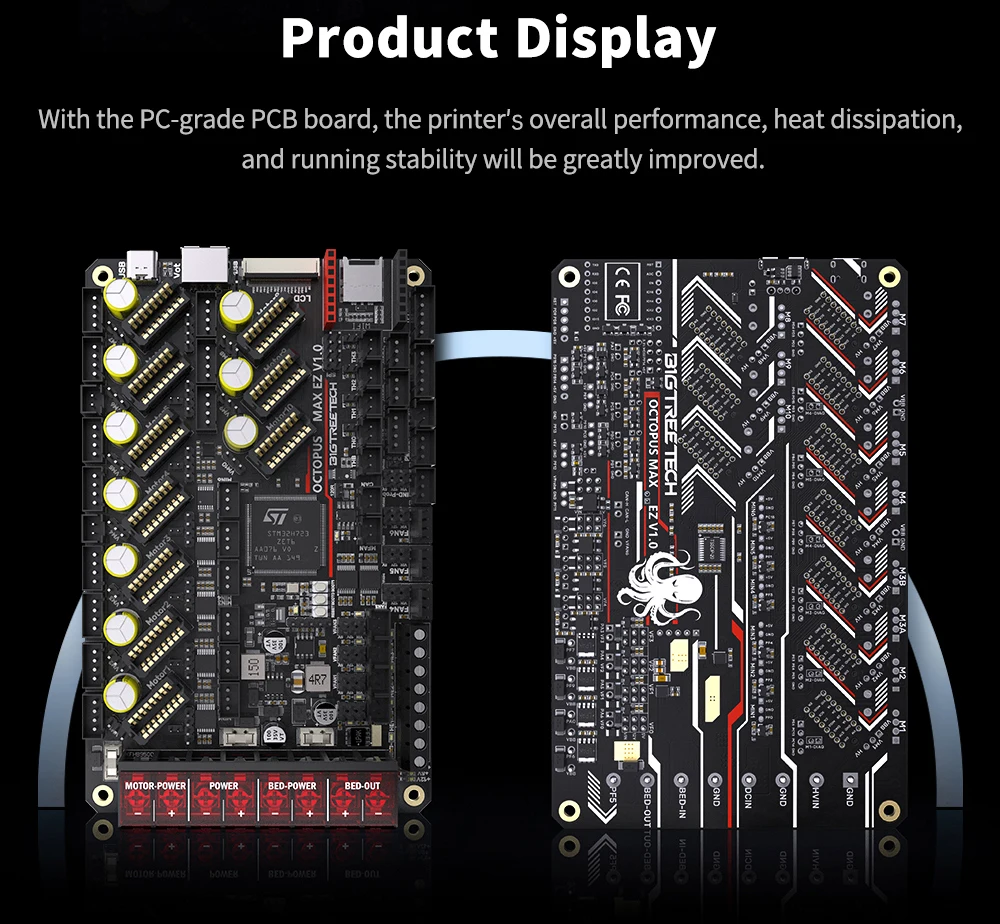

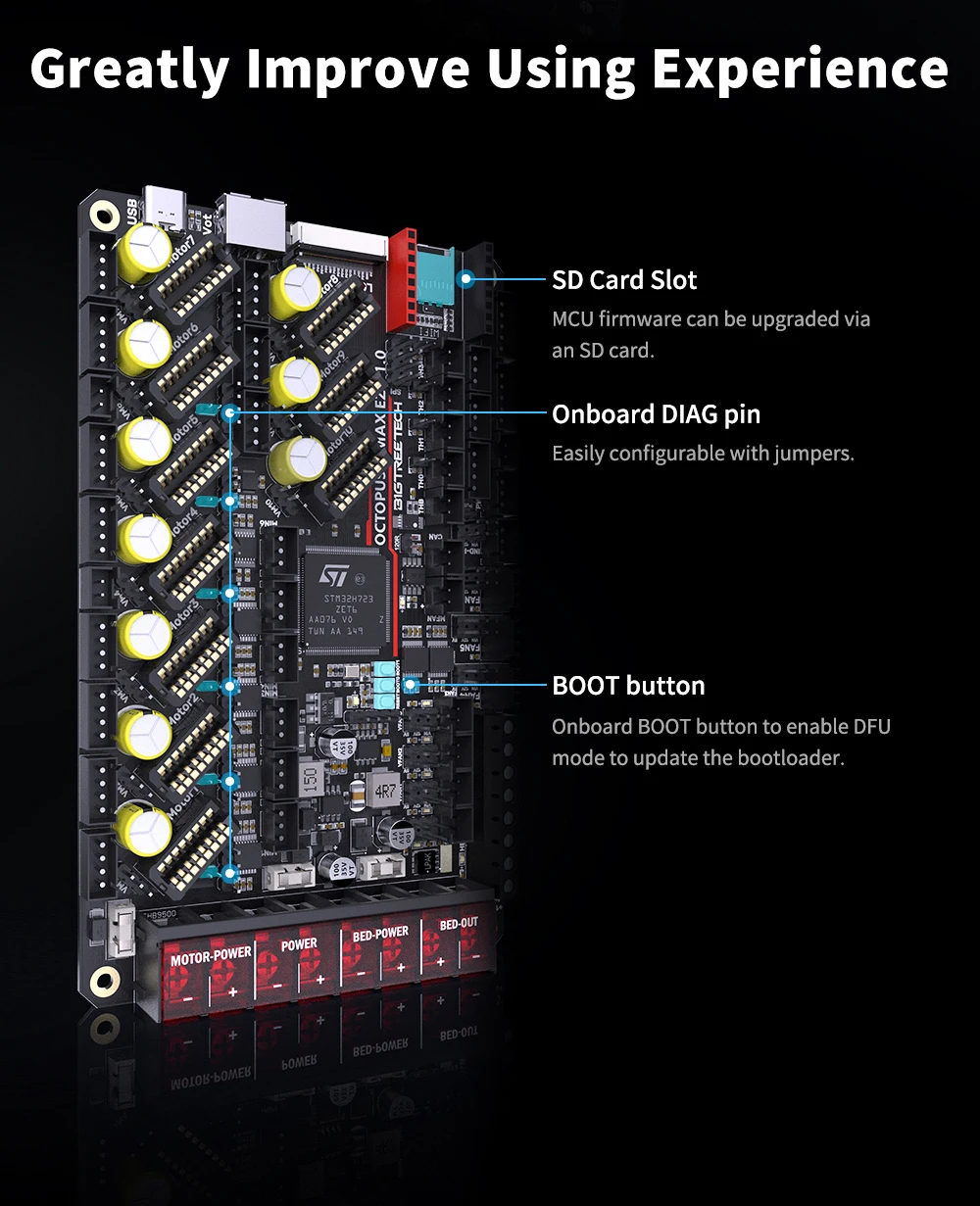

Allowing your printer to be easily upgraded.Greatly Improve Using ExperienceProduct Display

With the PC-grade PCB board, the printer’s overall performance, heat dissipation,

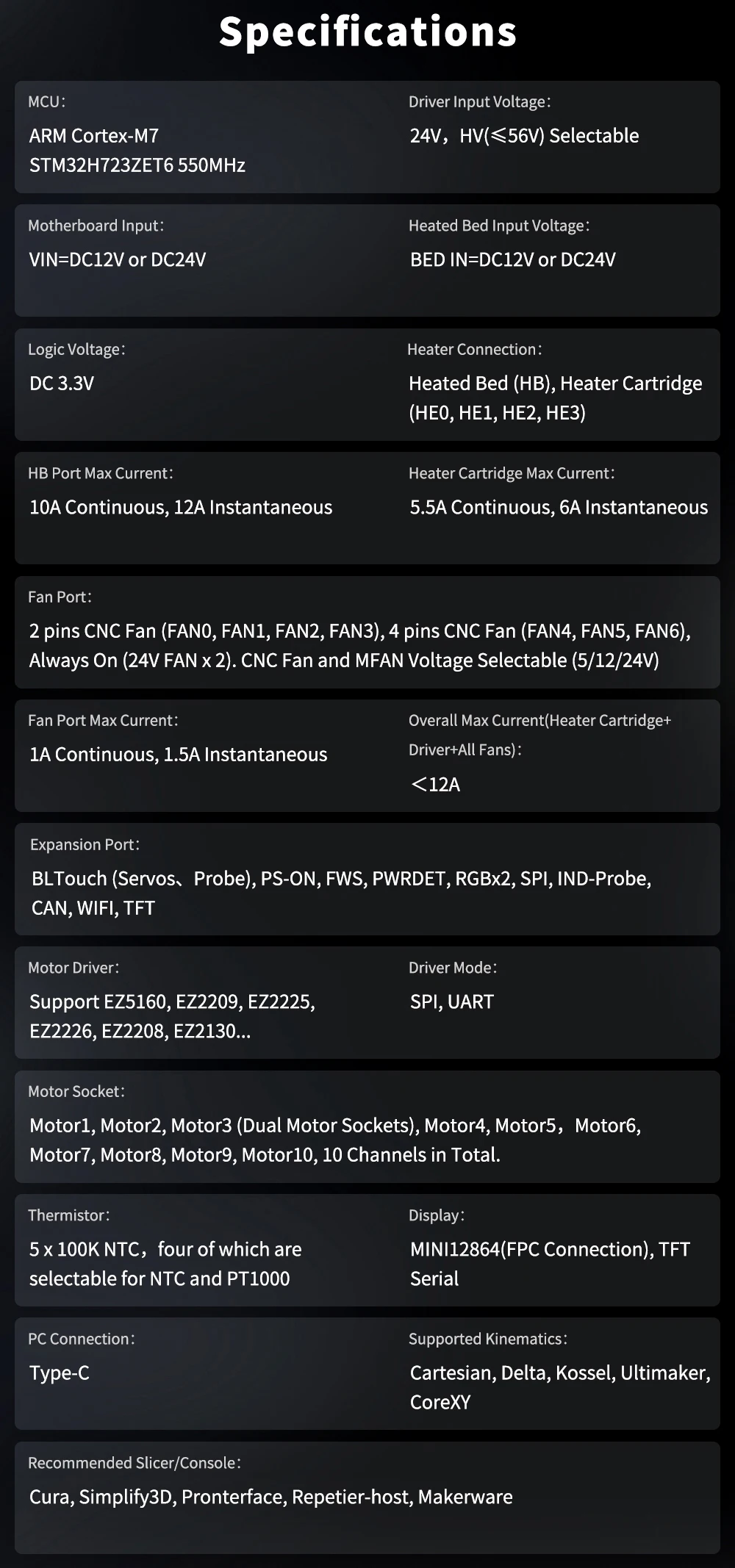

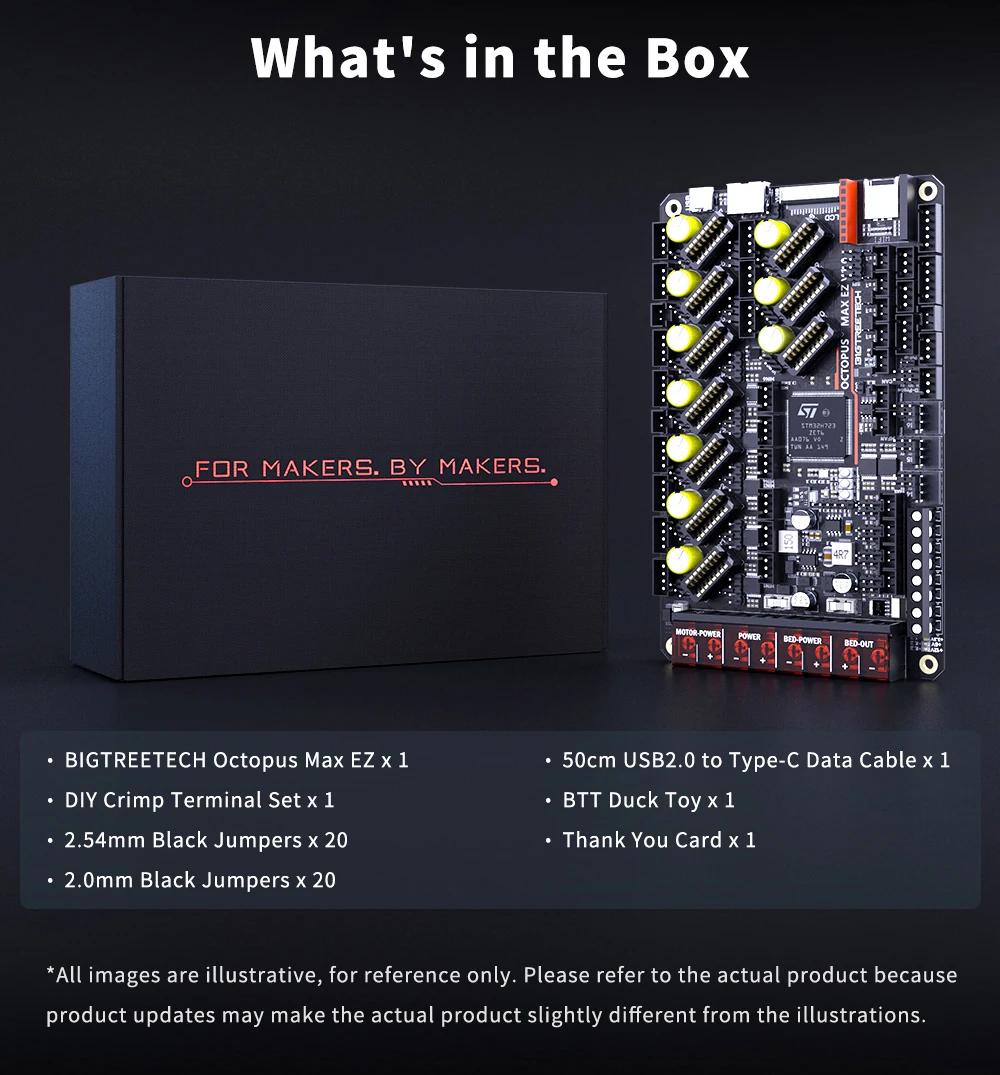

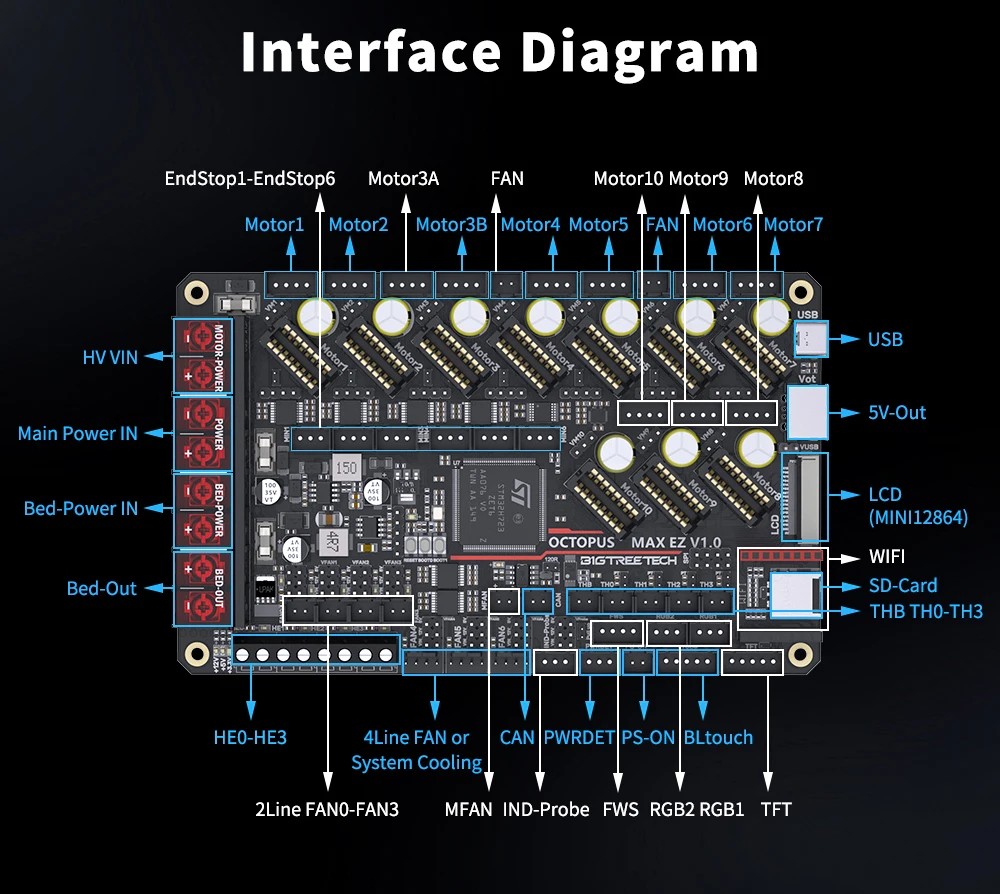

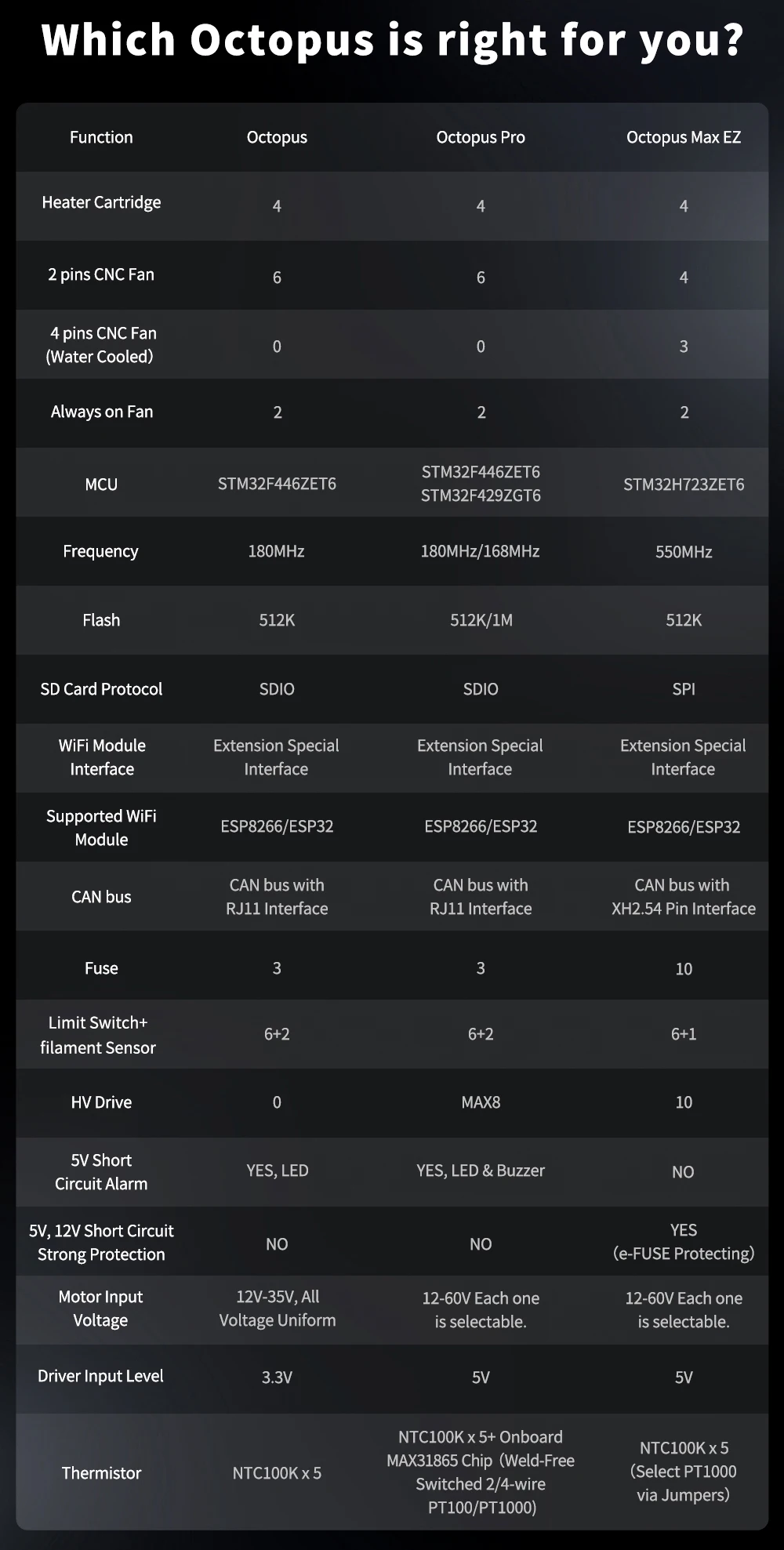

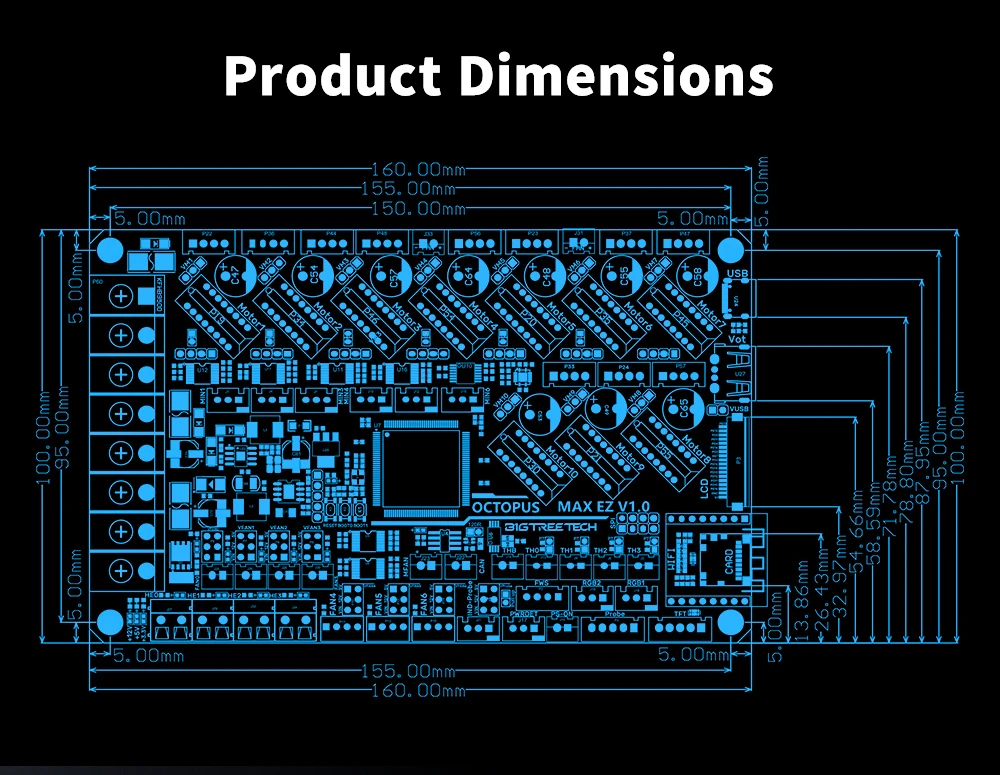

and running stability will be greatly improved.Product DimensionsInterface DiagramWhich Octopus is right for you?SpecificationsWhat’sin the Box
