Your Ultimate Klipper Companion
- Rockchip RK3566 Quad-core 64-bit 1.8 GHz：Delivers Smooth Klipper Operation
- 2GB LPDDR4：Faster RAM
- 32GB eMMC Storage：Stable, Shock-Resistant Klipper Operation
- DC 12V-24V Power：via Screw Terminals
- CSI/DSI Interface：Camera and Display Support
- 0.8 TOPS NPU：Enabling the Future of AI-Powered 3D Printing
- Gigabit Ethernet+2.4/5G
- Bluetooth 5.2

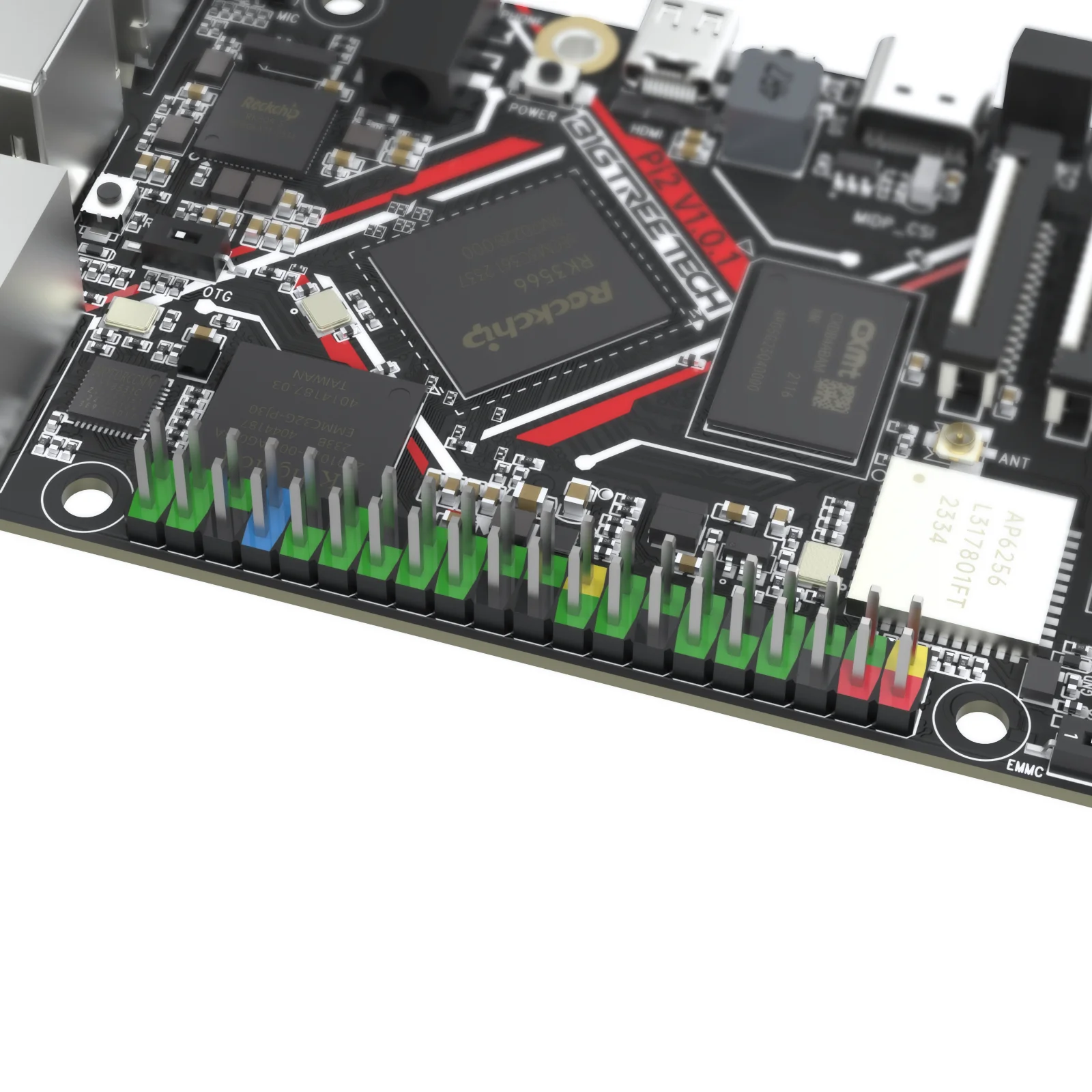

- 40-pin GPIO：Compatible with the Raspberry Pi Ecosystem
Rockchip RK3566
With a lightning-fast RK3566 processor running at up to 1.8GHz, the BIGTREETECH Pi 2/CB2 takes Klipper printing performance to unprecedented heights. Say goodbye to sluggish response times and say hello to buttery-smooth operation.
2GB LPDDR4
Offers significantly faster data transfer speeds, leading to smoother operation, faster file loading, and overall improved responsiveness in 3D printing tasks.
32GB eMMC Storage
10x the endurance of TF cards, it securely boosts Klipper performance, ensuring stable, high-speed operation.
Made for 3D Printing
Flexible DC12-24V Input：Ensures compatibility with your 3D printer’s power system.
CSI/DSI Interfaces
Add cameras and touchscreens with ease using CSI/DSI interfaces.
BIGTREETECH Pi 2 x Obico
- AI failure detection
- Convenient printer control
- G-Code file manager & print statistics
- Manage multiple printers
- Full OctoPrint & Klipper remote access
Ultimate Connectivity

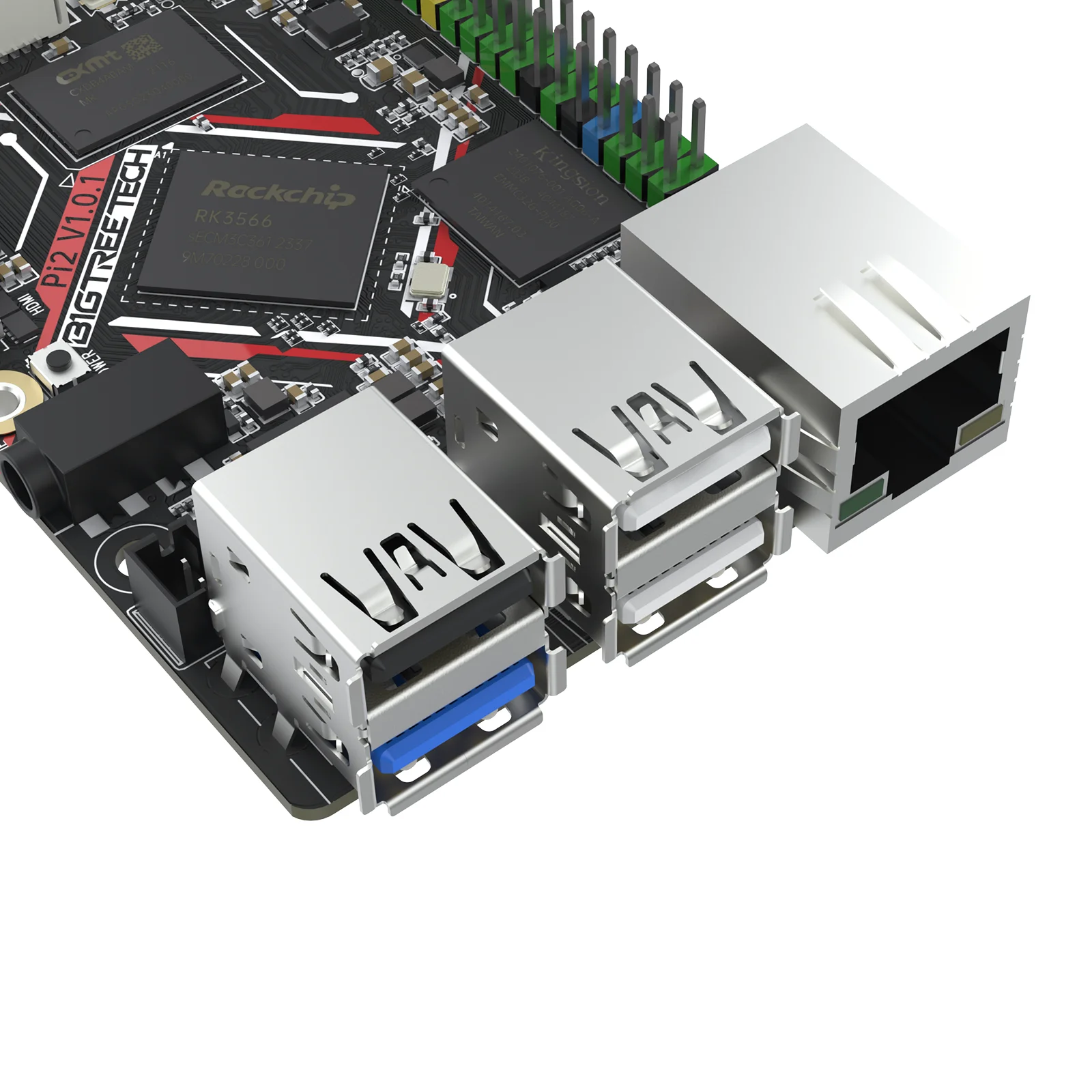

- 3 USB 2.0 + 1 USB 3.0：Easily connect ADXL345 V2.0 & S2DW V1.0 via USB to enable Klipper resonance compensation for improved print accuracy.
- HDMI 2.0 Support：Enjoy stunning visuals with HDMI 2.0 support.
- Bluetooth 5.2：Improved operational range and quicker data transmission speed.

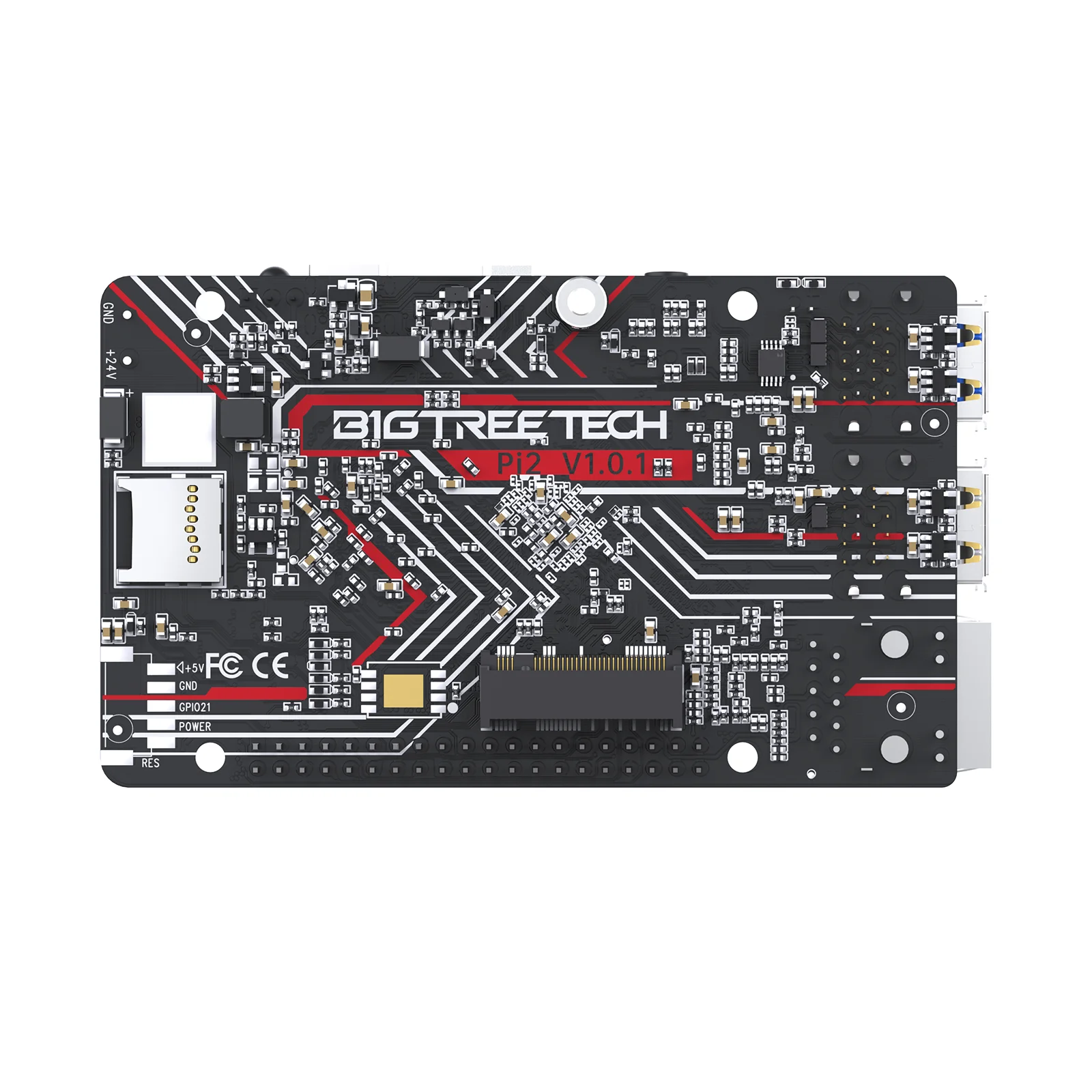

- PCIe 2.1 Interface：Attach an M.2 SSD to your BIGTREETECH Pi 2, ensuring quick data transfer and rapid boot times.
Stay Connected, Print Uninterrupted
Blazing-fast dual-band WiFi and reliable Gigabit Ethernet ensure seamless connectivity for remote printing and file transfers.
Simply connect the included WiFi antenna for a stronger and more stable WiFi signal, enhancing your device’s connectivity effortlessly.
Raspberry Pi mounting hole compatibility for effortless integration with your existing setup.

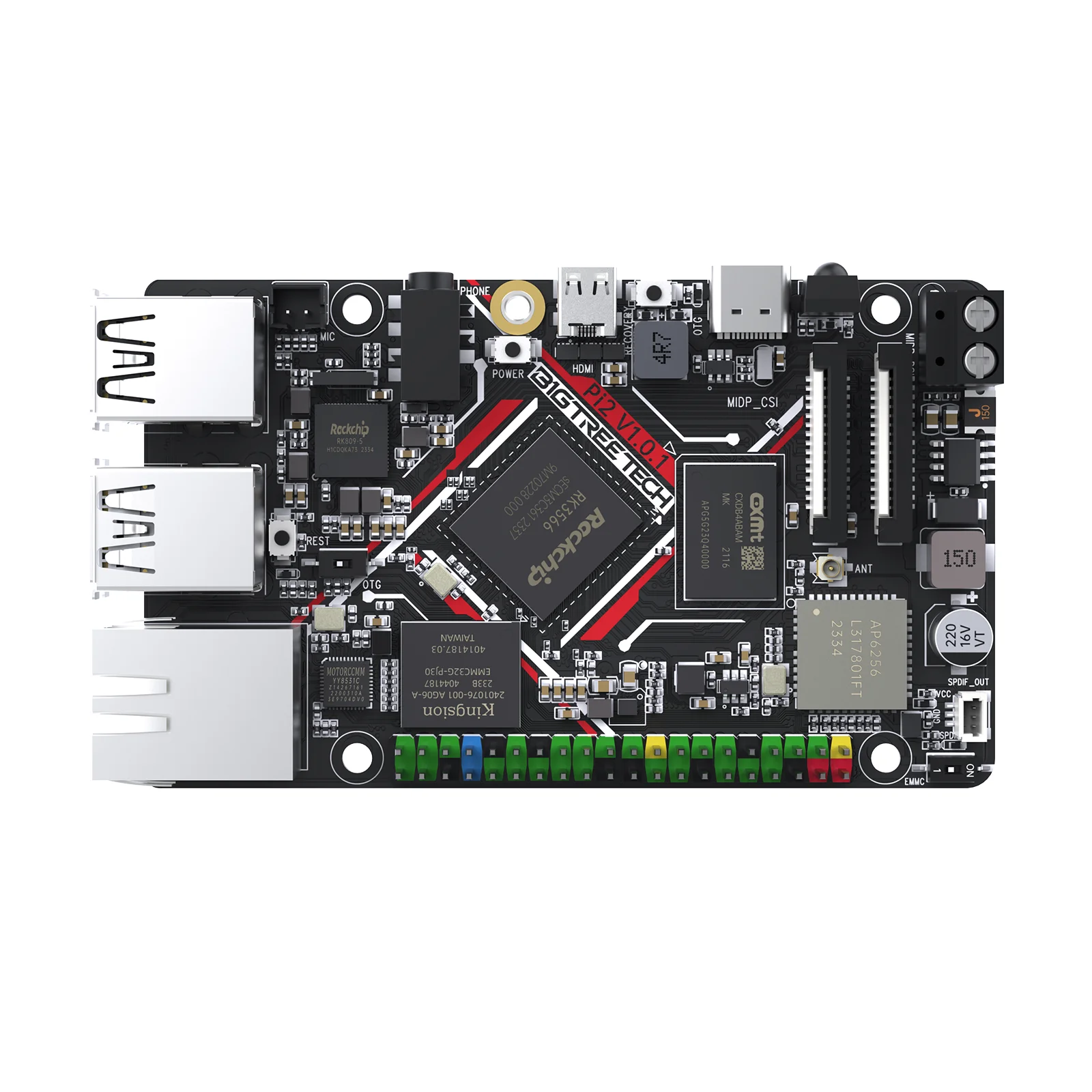

Pi 2 Specifications
CPU：Rockchip RK3566, Quad-core Cortex-A55 @1.8GHz
GPU：Mali-G52 1-Core-2EE
NPU：0.8 TOPS NPU
RAM：2GB LPDDR4 (Customizable: 1GB/2GB/4GB/8GB)
Onboard eMMC：32GB (Customizable: 8GB/32GB/64GB/128GB…)
MIPI DSI Display Support：Yes (320P-1080P 60Hz)
SPI Flash：Customizable: W25Q256JWEIQ
Camera：2-Lane MIPI CSI2 (320P-1080P 60Hz)
USB Ports：3x USB 2.0, 1x USB 3.0
PCIe：PCIe 2.1 1×1 Lane (Supports M.2 2242 4PIN+5PIN)
TF Card Support：Yes (SDIO2.0)
Ethernet：Gigabit Ethernet
WiFi：2.4G/5G, 802.11 ac/a/b/g/n, 433.3Mbps
Bluetooth：BT5.2
Audio Interface：3.5mm, compatible with MIC input
Condenser Microphone Input Interface：Yes
GPIO：Standard 40-pin GPIO Header
HDMI Output：HDMI 2.0 OUT (480P-4K 60Hz)
Onboard IR Receiver：Yes
Product Dimensions：93.8mm x 56mm
Installation Dimensions：58.2mm x 49.4mm
Mounting Holes：Same as Raspberry Pi
Input Voltage：DC 5V±5%/2A (via Type-C), DC 12V-24V (via Screw Terminals)
Output Voltage：3.3V±2%/100mA

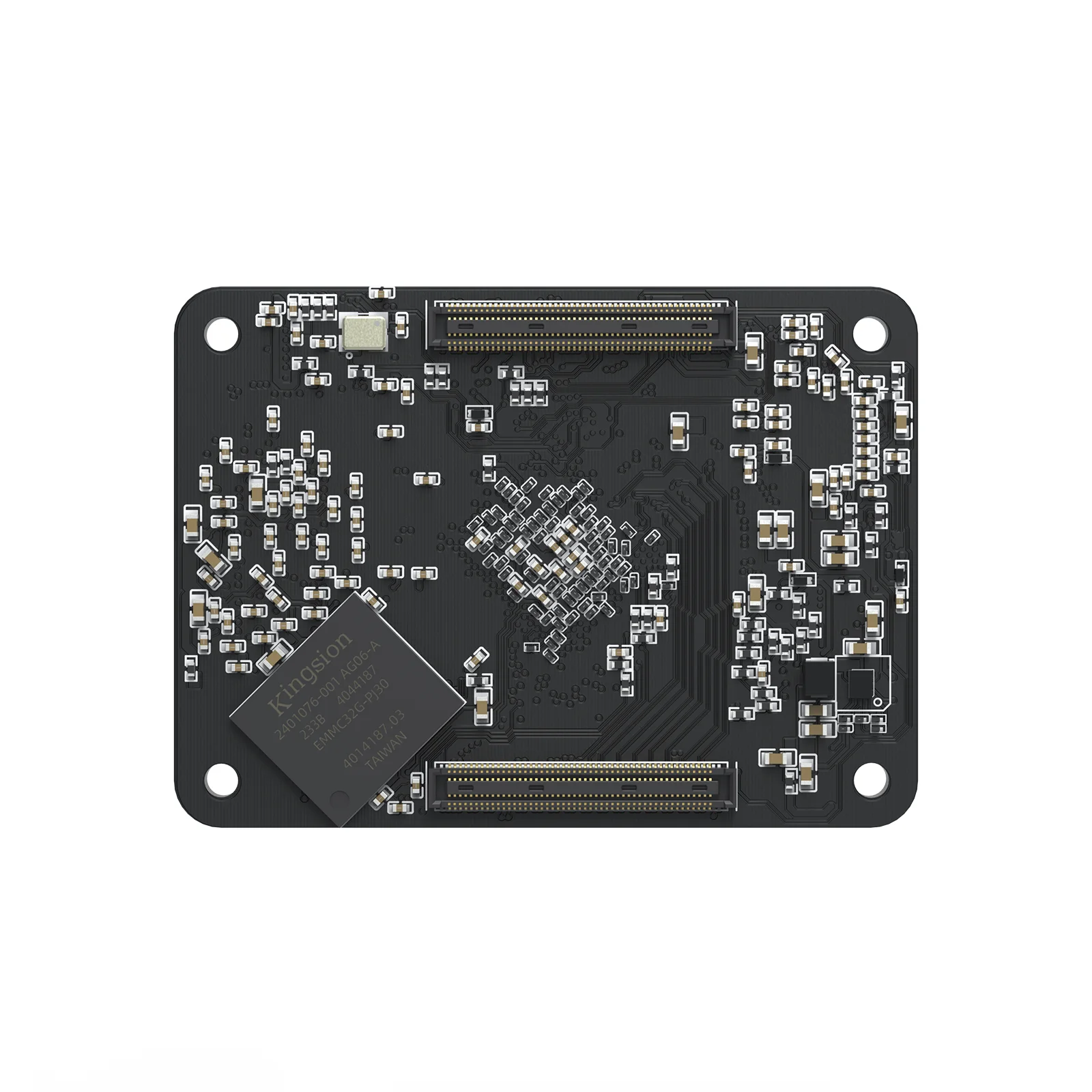

CB2 Specifications
CPU：Rockchip RK3566, Quad-core Cortex-A55 @ 1.8GHz
GPU：Mali-G52 1-Core-2EE
NPU：0.8 TOPS NPU
RAM：2GB LPDDR4 (Customizable: 1GB/2GB/4GB/8GB)
Onboard eMMC：32GB (Customizable: 8GB/32GB/64GB/128GB…)
MIPI DSI Display Support：Yes (320P-1080P 60Hz)
Camera：2-Lane MIPI CSI2 (320P-1080P 60Hz)
USB Ports：3x USB 2.0, 1x USB 3.0
PCIe：PCIe 2.1 1×1 Lane (Supports M.2 2242 4PIN+5PIN)
GPIO：Standard 40-pin GPIO Header
HDMI Output：HDMI 2.0 OUT (480P-4K 60Hz)
WiFi：2.4G/5G, 802.11 ac/a/b/g/n, 433.3Mbps
Ethernet：Gigabit Ethernet
Bluetooth：BT5.2
TF Card Support：Yes (SDIO2.0)
Output Voltage：3.3V±2%/100mA
Dimensions：40mmx55mm (Same mounting hole positions as Raspberry Pi CM4)
The Pad 7 requires a separate purchase of the CB2 heatsink, which will be available soon.
https://github.com/bigtreetech/CB2
